3 Axis Welding Positioners

rotolift nero(2) | 3 Axis Welding Positioners

ROTOLIFT is a 3 axis hydraulic positioner and handler specifically designed for assembling and welding operations. Thanks to its functional features, the machine considerably reduces the moving of the workpiece and therefore the use of traditional lifting systems.

ROTOLIFT is an ergonomic machine featuring great flexibility. Its innovative feature is the possibility not only to tilt and rotate the workpiece, but also to lift and lower it.

Positioners with loading capacity up to 100.000 kg available upon request.

In 2 versions:

  • HYDRAULIC: hydraulic lifting, titling and rotaion
  • ELETRIC: hydraulic lifting and titling, electromechanic rotation by means of power-ventilated vectorial inverter

Advantages:

  • Reduction of weldments handling time
  • Minor use of traditional lifting equipment
  • Safer and more ergonomic working enviroment
  • Lifting, titling and rotation of a weldment on a single machine
  • Improvement of welding quality
  • Fast return on investment (ROI)
  • Simplified welding precedure specifications (WPS)
  • 3 axis: elevation, rotation, titling

Features

rotolift sollevamento parallelogramma | 3 Axis Welding Positioners
  • Parallelogram lifting system of the workpiece , patented by Sideros, allows to lift the workpiece by keeping the same inclination.
rotolift inclinazione 140 | 3 Axis Welding Positioners
  • Workpiece inclination up to 90/140°

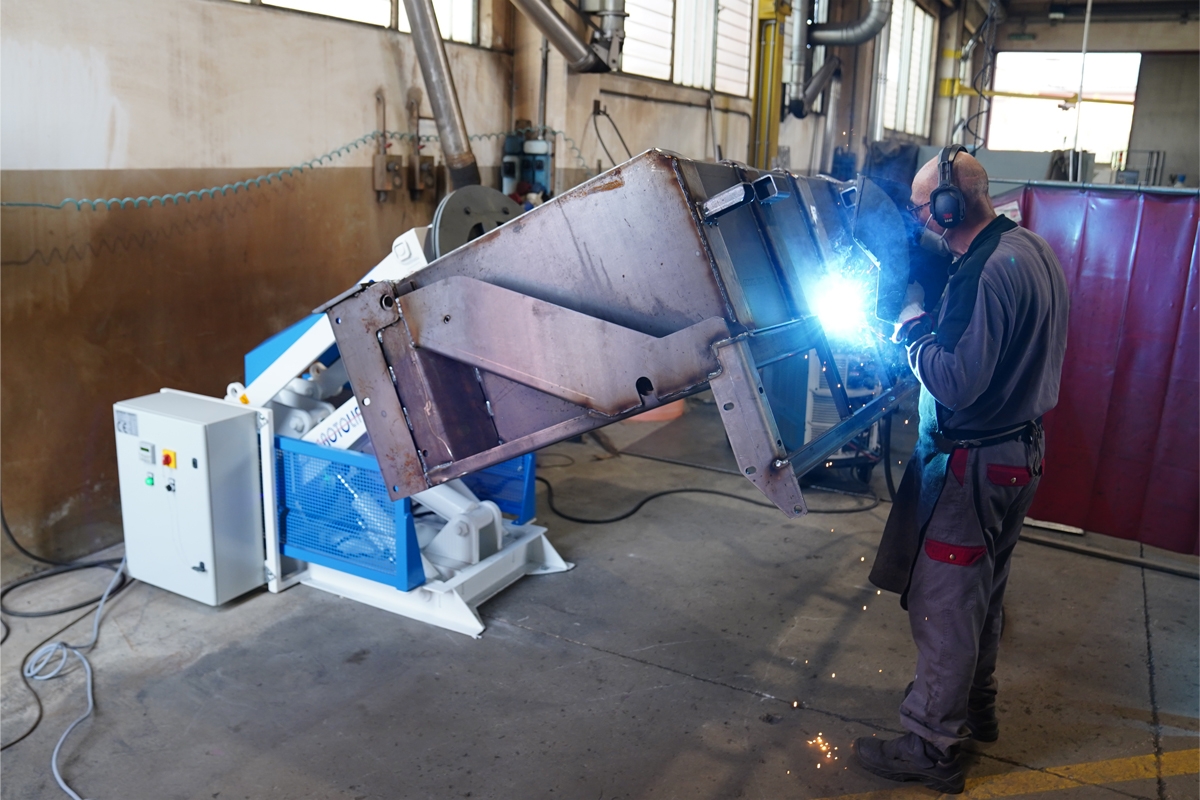

rotolift massa rotante | 3 Axis Welding Positioners
  • Rotary ground for welding operations from 400 to 1500 Ampere integrated in the machine
grafico rotolift | 3 Axis Welding Positioners
  • Improvement of personnel's performance
  • Reduction of operating time by 60%
rotolift design | 3 Axis Welding Positioners
  • Sturdy and compact design
rotolift rotazione elettrica | 3 Axis Welding Positioners
  • Electric workpiece rotation by potentiometer and inverter
rotolift piastra personalizzata | 3 Axis Welding Positioners
  • Customized perforated plate with modular welding table
rotolift sladatura montaggio | 3 Axis Welding Positioners
  • Suitable for welding and assembly operations
rotolift voltaggi | 3 Axis Welding Positioners
  • Touch screen HMI with Teaching System for automatic programming of movement steps
rotolift pulsantiera pedaliera | 3 Axis Welding Positioners
  • Remote pushbutton panel and foot pedal to ease movement control
rotolift voltaggi disponibili | 3 Axis Welding Positioners
  • Available Voltage:
    400V - 50/60Hz CE
    480V - 60Hz UL complied
    600V - 60Hz CSA complied
