Head and Tailstock Positioners

Syncrolift | Head and Tailstock Positioners

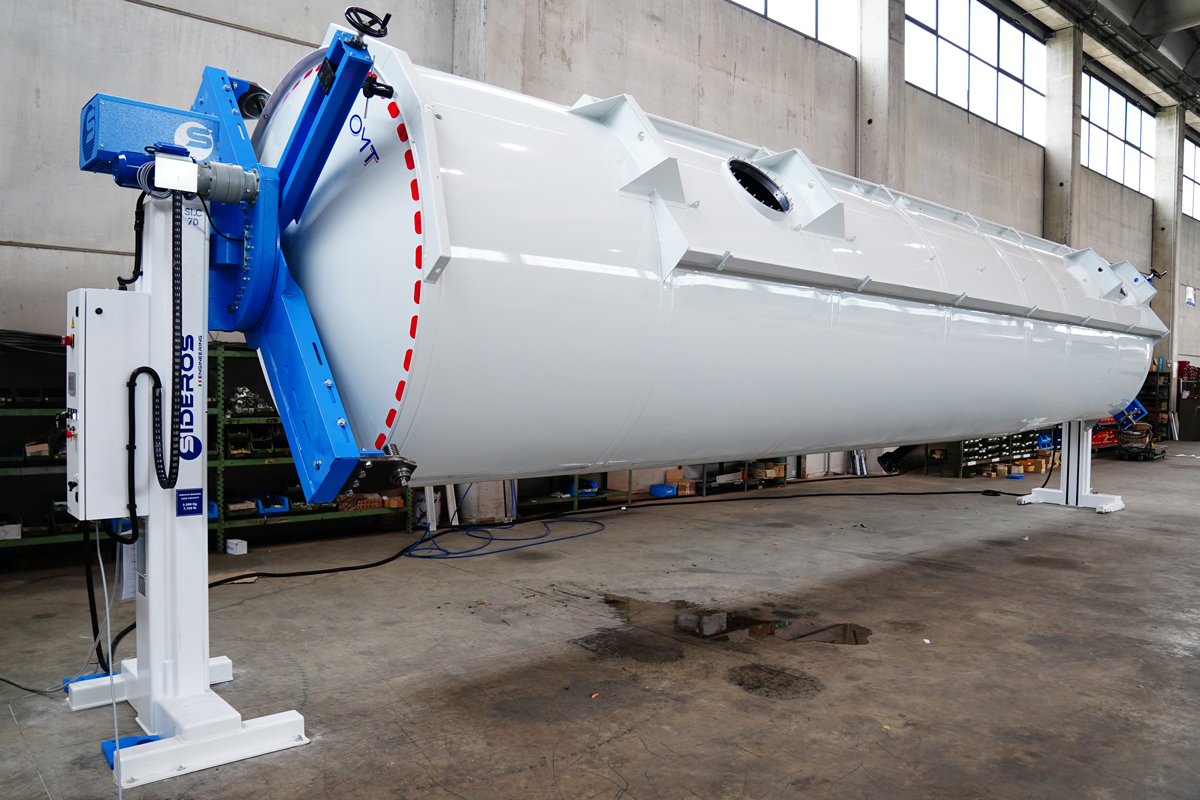

Sideros Engineering Head & Tailstock Positioners are used to weld and assembly long and large weldments in many different application fields. Besides the benefits of ergonomics and safety during welding and assembly applications, the revolutionary feature of Syncrolift is the compactness and the portability of both columns, thanks to their dedicated hydraulic jacks. The result is an extreme flexibility in the factory.

Syncrolift features two main axis: Electrical elevation/descent, and Electrical 360° left/right rotation.

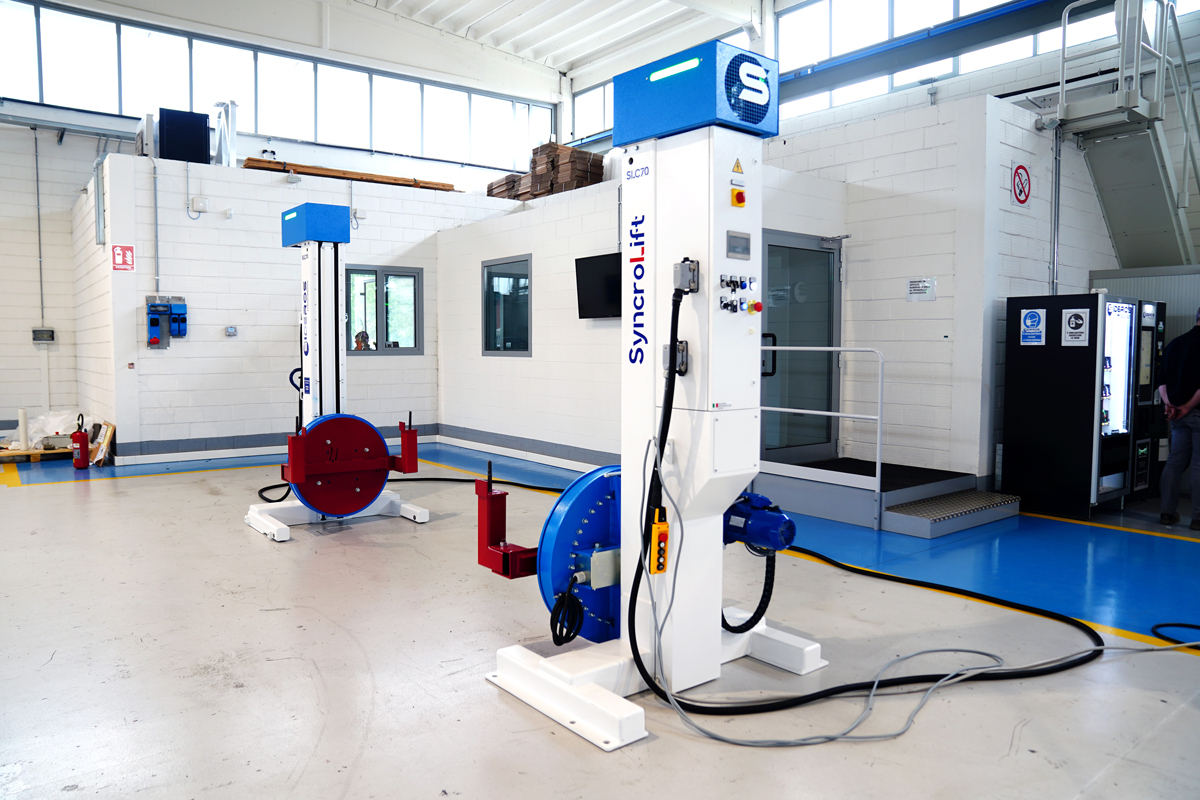

Syncrolift is configured with a fixed to the ground motorized headstock and an idler tailstock to adjust the workpiece lenght.

 Advantages:

  • Improved Safety
  • Proper Ergonomics
  • Improved weld quality
  • Welding/Assembly procedures repeatability
  • No need of particular maintenance even with continuous and heavy use
  • Cost reduction and profit improvement

Application Fields



sectors | Head and Tailstock Positioners

Cost-Benefit Analysis

cost benefit syncrolift | Head and Tailstock Positioners

Syncrolift Main Features

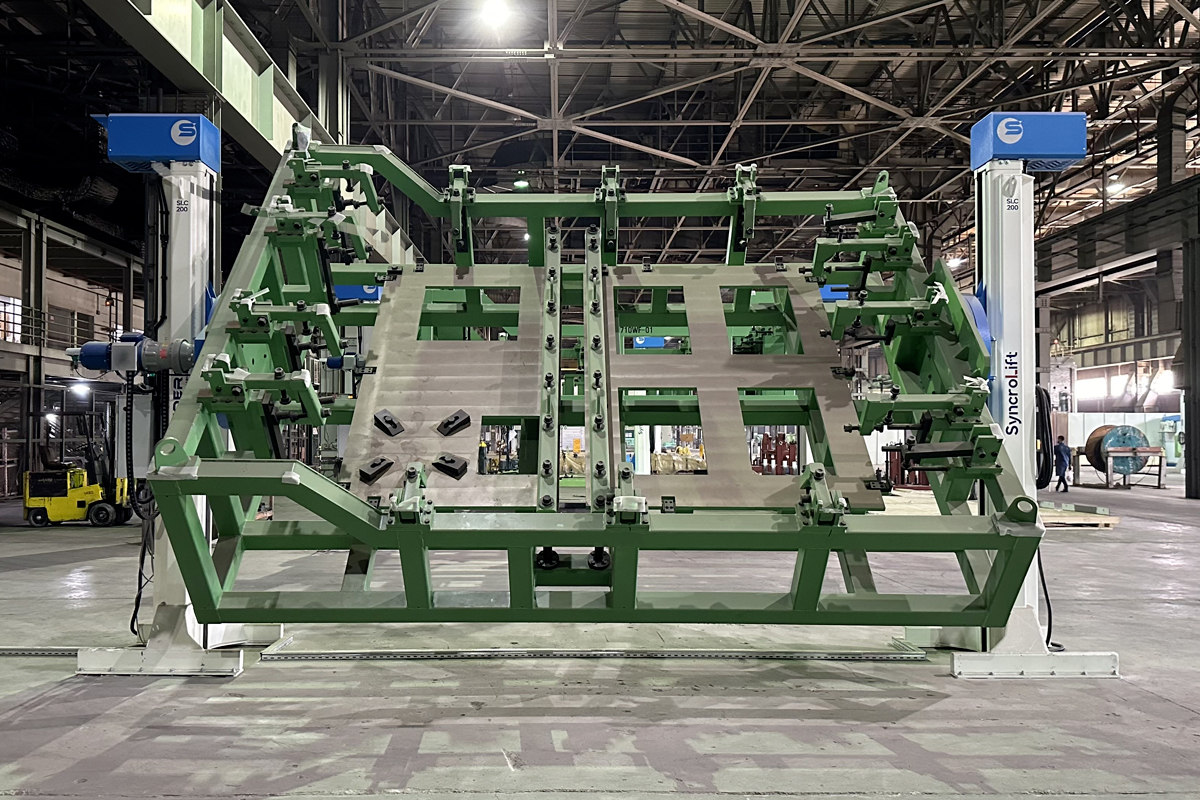

syncrolift sistema anticollisione(1) | Head and Tailstock Positioners
  • Advanced anti-collision safety system
  • Automatic column height alignment
  • Automatic Supporting Nuts Wear Sensors
syncrolift montaggio | Head and Tailstock Positioners

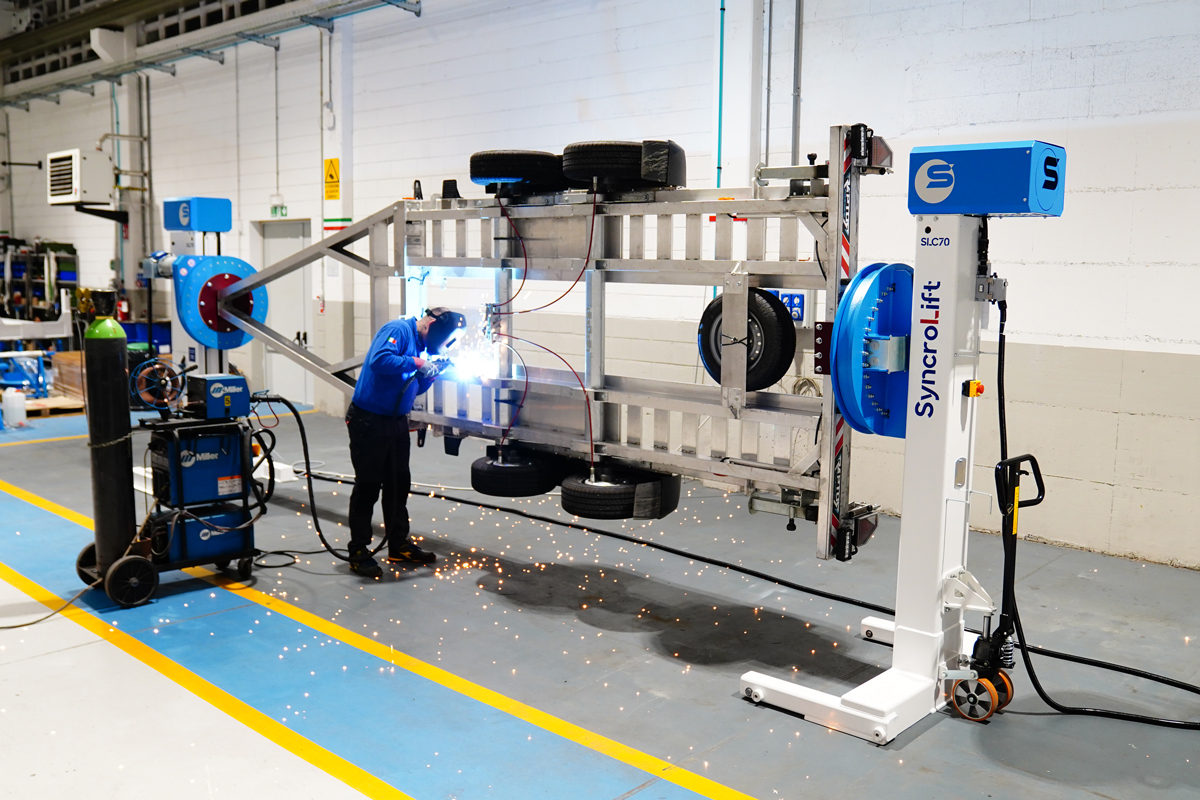

  • Suitable for welding and assembly operations
rotazione elettrica | Head and Tailstock Positioners
  • Lifting, tilting and rotation electrically driven with speed control by inverter
syncrolift design | Head and Tailstock Positioners
  • Compact and Sleek design
  • Safety Laser Scanners or Light Curtains to limit the access in the working area
syncrolift transpallet | Head and Tailstock Positioners
  • Movable Tailstock powered by manual or motorized hydraulic jack
syncrolift touch screen | Head and Tailstock Positioners
  • 7" user friendly Touch Screen HMI, to ease the management and the operation of the positioner

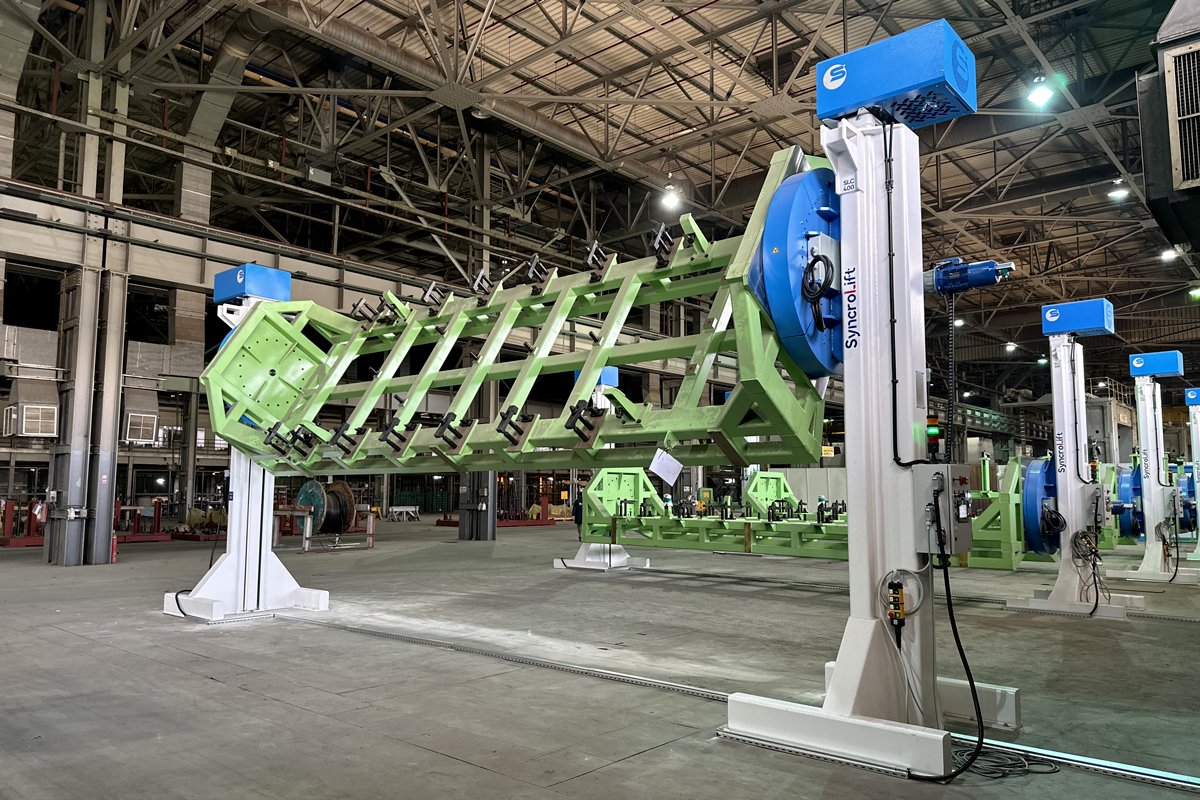

syncrolift slc400 | Head and Tailstock Positioners
  • Customized columns height up to 4 mt (13.1 ft)
syncrolift massa strisciante(1) | Head and Tailstock Positioners
  • Integrated Rotary Ground up to 1600 AMP to ease the welding of parts while rotating.

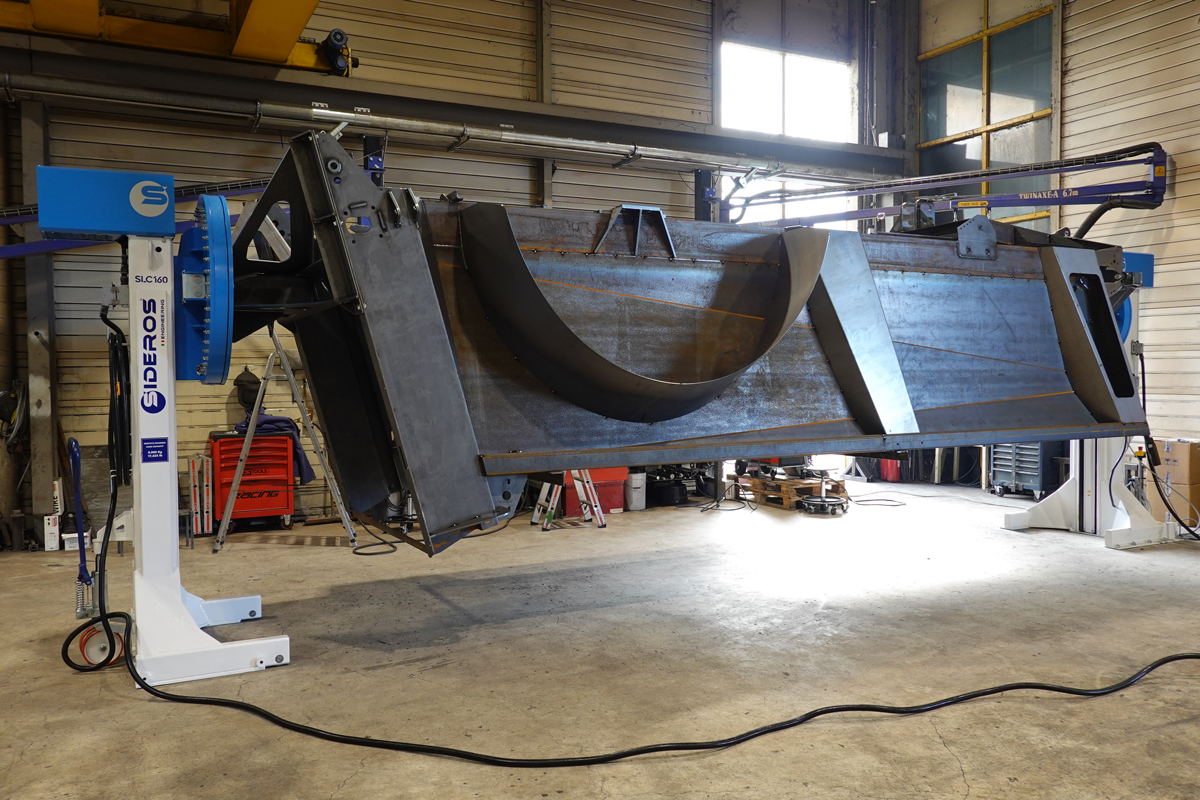

syncrolift cavo interconnessione armato | Head and Tailstock Positioners
  • Reinforced and Shielded Power and Signal connection cable between columns. WiFi Connection can be offered as Optional.
syncrolift sicurezza strutturale | Head and Tailstock Positioners
  • The Columns are designed according to strictest safety factors, and tested overload at the final production phases.
syncrolift colonna folle slave | Head and Tailstock Positioners
  • Syncrolift features, as standard, a Motorized Fixed Master Column (Headstock) and a Portable Slave Idle Column (Tailstock)
syncrolift colonna folle motorizzata | Head and Tailstock Positioners
  • Syncrolift can be equipped with both Master and Slave Columns Motorized, to achieve a double rotation torque, and an improved workpiece rigidity while rotating.

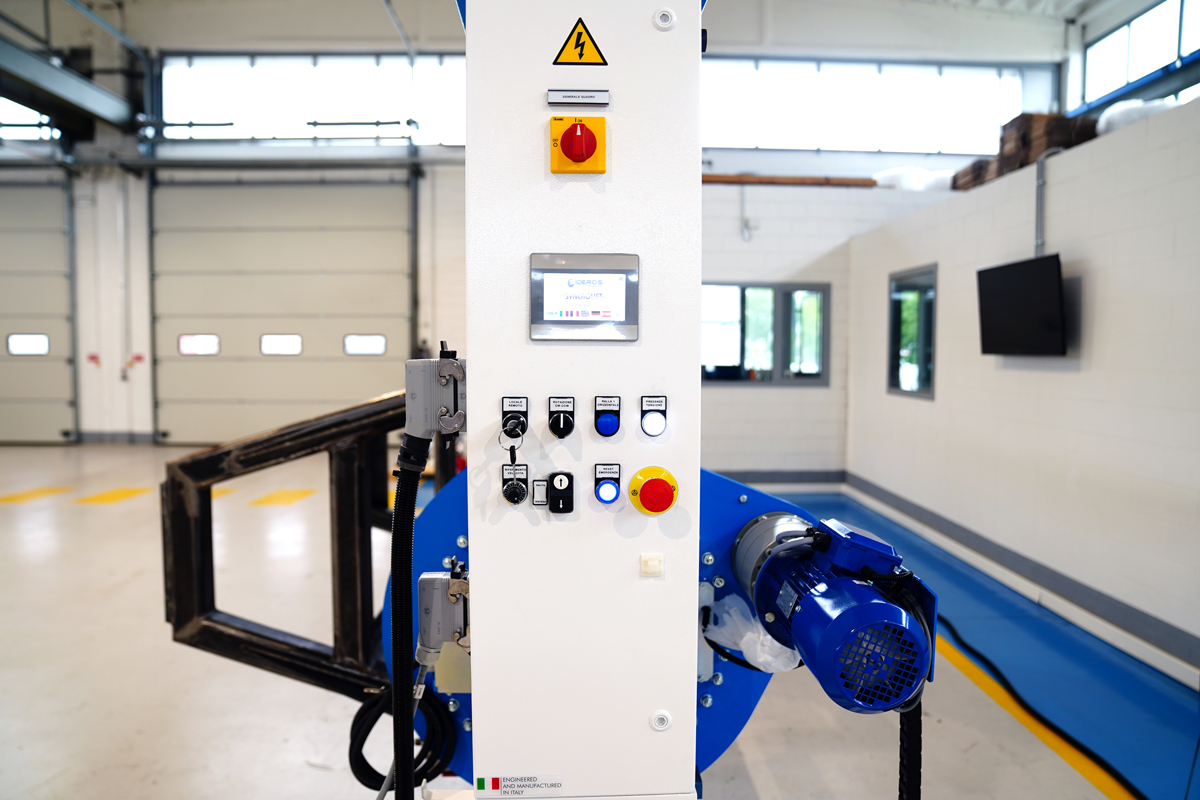

Syncrolift quadro | Head and Tailstock Positioners
  • Available Voltages:
    400V - 50/60Hz CE
    480V - 60Hz UL complied
    600V - 60Hz CSA complied
