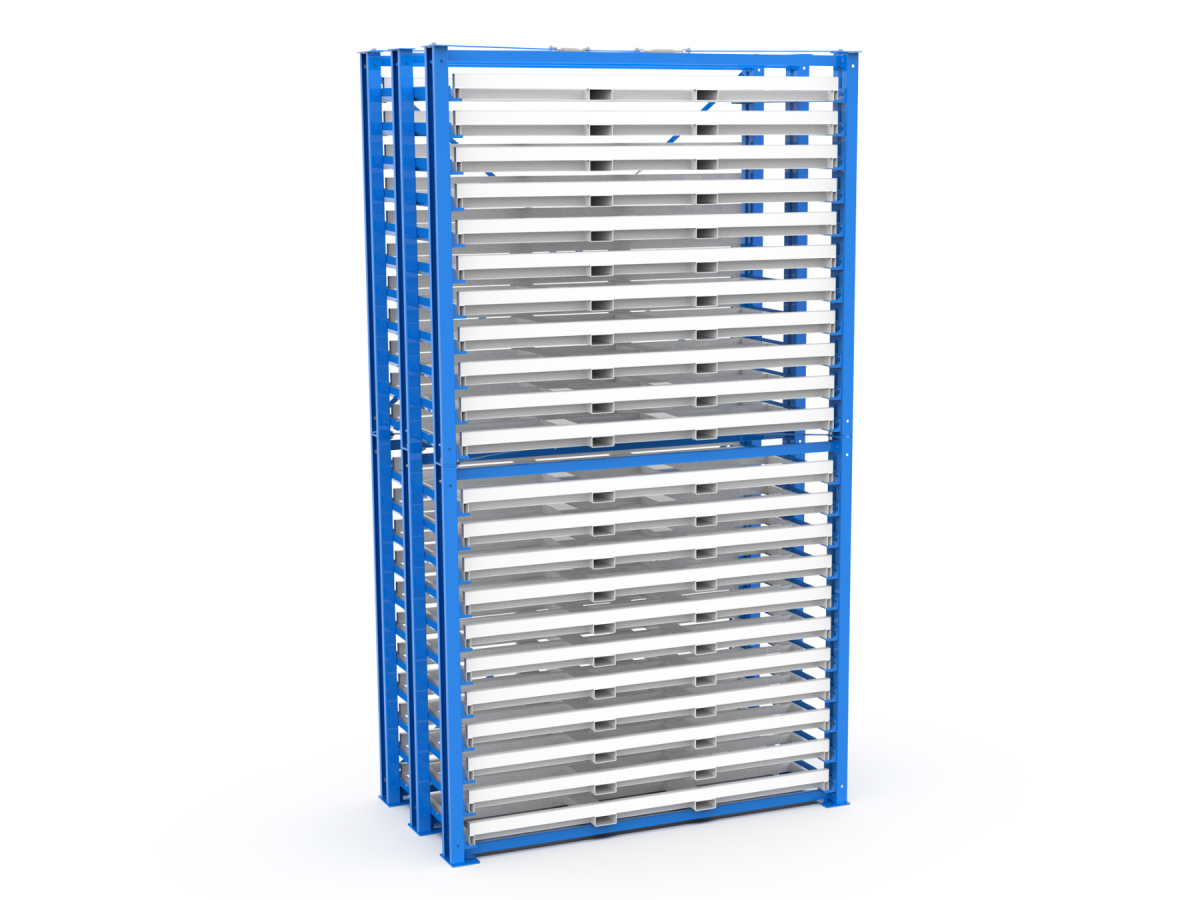

Cassette Rack Stack
Storage system designed to be served exclusively by forklift trucks, ideal for heavy loads and large formats.
Load capacity
- Maximum load capacity per drawer: 3,000 kg.
- Total load capacity of the rack: 60,000 kg.
Overall dimensions
| Sheet metal format | Rack width | Rack Depth |
| 2500x1250 (98x50) | 2880 (113) | 1580 (62) |
| 3000x1500 (118x59) | 3380 (133) | 1830 (72) |
| 4000x2000 (157x78) | 4380 (172) | 2330 (92) |
| 6000x1500 (236x59) | 6380 (251) | 1830 (72) |
| 6000x2000 (236x78) | 6380 (251) | 2330 (92) |
Available modules and levels
- Total rack height up to 6 meters.
- Number of levels varies depending on the load capacity required for each floor.
Guides and positioning system
- Guides designed with a slight incline to facilitate the insertion and positioning of shelves using a forklift.
- Geometry designed to reduce maneuvering time and increase operator precision.
Safety in use with forklift
- Each level equipped with visual indicators for maximum load height, which help prevent overloading and material displacement.
- Raised front edges on the guides to prevent accidental drawer extraction during forklift operations.
- Rear stops on the guides, which limit excessive shelf thrust and protect the structure and load.
